Creating another array using the same index

Revision as of 05:04, 19 May 2010 by Carol (talk | contribs)
  • Close result and object window of Maintenance cost

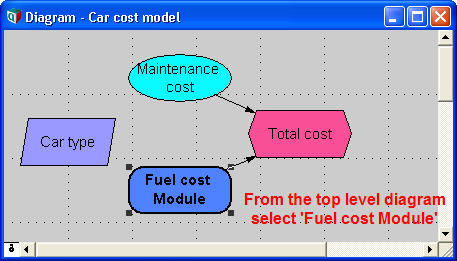

  • Double click on 'Fuel cost Module' to open the diagram inside

Creating another array fuel cost module.jpg

  • Double click on 'Miles per gallon' to bring up it's object window

Note that it's definition is already set to 'Uniform (20,30)

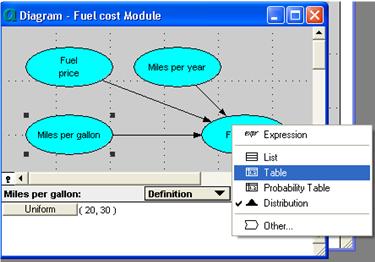

  • Change node's definition from Uniform (20,30) to Table


Expected: Question box would appear

  • Select 'ok' button

This opens to Indexes window

  • Double click 'Car type'
  • Click 'ok' button

Edit table car type.jpg

Edit table of Miles per gallon appears

  • Select the first cell, type 'Uniform (25,35)
  • Arrow down
  • On the second cell type 'Uniform(15,25)
  • Press 'tab' key
  • Press result button

Expected: Result table of Miles per gallon with cell values 30, 20 will be shown
