MdTable

MdTable(t, rows, cols,vars, type, defaultValue, valueColumn)

MdTable converts a 2D relational table, «t», indexed by «rows» and «cols», into an N-dimensional array result. It is analogous to PivotTable in Excel. It is the inverse of MdArrayToTable().

Suppose «cols» has N elements. In the standard case, the first N-1 elements contain the identifier of an index (or a Handle to an index), and the last column contains a numerical value (a "measure" in database terminology). It returns an array with N-1 dimensions, corresponding to the N-1 indexes. Each cell contains the sum (or other «type») over the numerical values for all rows of «t» whose values match the index values in first N-1 «cols». If the index values of a cell in the result array match no row in «t», the result cell contains «defaultValue» (default NULL).

	⇒	Mpg ▶ Car_type ▼ 26 30 35 VW 2185 1705 Null Honda 2330 Null 2210 BMW Null 2955 2835

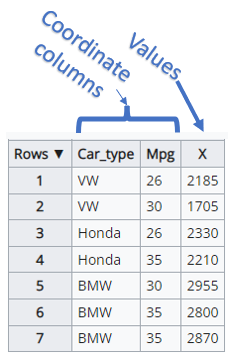

A relational table on the left is the input to MdTable. The array on the right is the result.

If the values in the first N-1 «cols» are identifiers of or handles to the desired indexes, you can specify the list of identifers or handles to indexes in the optional parameters «vars». You may want to create indexes for some or all of them. You can use the Unique function to define each index as the unique set of values from the corresponding column. Or, you can let MdTable automatically create Local Indexes for any or all of these columns by specifying a textual name for the new index that starts with a dot (for example, '.I'). The dot prefix avoids possibly identifier collisions with existing or future global objects. The local index is set to the sorted unique values that appear in the corresponding column. Yet another option is to allow MdTable to define a global index for you corresponding to a given column. To do this, create the global index and set its definition to ComputedBy(X}, where X is the name of the variable containing the call to MdTable. If the call to MdTable is within a User-Defined Function, then X would be the variable that calls the UDF. When using this configuration, the «cols» element cannot be a Handle to the index (which introduces a disallowed dependency loop). When evaluated, MdTable will set the global index's IndexValue to the sorted unique values that occur in the corresponding column.

MdTable can also handle a relational table that has multiple values ("measure" columns) -- a "fact table" in database terminology. In this case, last M elements of the «cols» index contain these measures. And the first N-M columns contain the coordinates of the indexes. You specify «valueColumn» parameter as the index over last M value columns. Then the resulting array has N-M+1 indexes -- corresponding to the first N-M columns plus the «valueColumn» index.

Optional parameters

vars

If «Cols» already contains identifiers of (or handles to) the Index variables containing the unique values in each column, you can omit «vars». Otherwise, you should specify «vars» as a list of the identifiers or Handles to these indexes. You don't need to include the last column(s) in «vars», which it assumes contains the values. Each index in «vars» becomes an index of the result. If you want to refer to an existing local index, you must use a Handle, because text identifiers can only refer to a global variable. It's safer to use Handles for all the Indexes, so that the model won't break if someone changes the identifier of one of the Indexes. If you provide a textual index name, but the index does not exist, MdTable will create a local index with that name automatically.

Instead a List, you can also pass a 1-D array indexed by «Cols» to the «vars» parameter. When «vars» is a List, it contains only the non-value columns. When «vars» is indexed by «Cols», it contains an element for every column, even the value column(s). The element(s) of «vars» that correspond to the value column are ignored.

Each element of «vars» identifies the corresponding index in one of the following ways:

• A Handle to a global index which has been suitably defined.
• A textual name of a global index which has been suitably defined.
• A Handle or textual name of a global index that is defined as ComputedBy(X), where X is the name of the variable that calls MdTable. In this case, MdTable sets the index values to the sorted unique values that appear in the corresponding column.
• A textual name that starts with a dot, such as '.Year_acquired'. MdTable will create a new local index with that name containing the sorted unique values that appear in the corresponding column. If the text includes spaces or other non-identifier characters, a legal identifier is generated (e.g., by replacing disallowed characters with '_') and the title is set to the text (without the initial dot).
• Null -- which ignores the corresponding column during the transformation..

When use an existing global index, it should have as values all the unique values from the corresponding column in «T», for example:

Index Cols := ['A', 'B', 'Value']

Index Rows := 1..100

Variable T := Table(Cols, Rows)(.....)

Index A := Unique(T[Cols = 'A'], Rows)

Index B := Unique(T[Cols = 'B'], Rows)

Variable Result := MdTable(T, Rows, Cols)

It's safer to use «vars» using handles rather than the text identifiers of each index:

INDEX Indexes := ListOfHandles(A, B)

Variable Result := MDArray(T, Rows, Cols, Indexes)

In this case, the model will not break if someone changes the Identifier of A or B, since these automatically propagate through Indexes. If you set an element in «vars» to Null, then the column corresponding to that position will not be mapped to an index. This is equivalent to first re-indexing your data to a new Column index without the column and then applying MdTable to that.

type

The «type» function combines the values when two or more rows of «T» have the same coordinates (values in their index columns). The default is "sum". You can specify other options as a text identifier or handle, including: "min", "max", "average" , "count", "product", "First", "Last" or any Array-reducing functions that operates over an index, with parameters of the form: (A: Array[I]; I: Index). It is OK if it has other parameters as long as they are optional.

You can also create your own custom type function as a UDF.

The "count" method ignores the contents of the value column(s), so is equivalent to "Sum" when the value column is one everywhere. To apply "count" without any value column, specify the parameter valueColumn:Null. Unless you explicitly specify the default value, "count" uses 0, whereas other methods default to Null.

defaultVal

(Default: NULL) The value of a result cell that has no corresponding rows in «T». It is often a good idea to set the default to 0.

valueColumn

In OLAP terminology, a fact table is a table in which the first N-M columns specify coordinates in a multi-dimensional cube, and the last M columns specify measures along a measure dimension. Each row has multiple values across this measure dimension. In this case, MdTable() generates a multi-dimensional array with N-M+1 dimensions, the extra dimension being the measure dimension. You specify the measure dimension in the «valueColumn» parameter, usually as an Index, but it can be a 1-D array, indexed by your measure index. The size of the «valueColumn» index must be M. In this case, «vars» identifies as indexes only the first N-M elements of «Cols». It maps the remaining M «Cols» into «valueColumn», which is also an index of the result.

Library

Array / Dimensional transformations

Examples

Download model with examples

Suppose T, Rows, and Cols are defined like this:

	Cols ▶
Rows ▼	Car_type	Mpg	X
1	VW	26	2185
2	VW	30	1705
3	Honda	26	2330
4	Honda	35	2210
5	BMW	30	2955
6	BMW	35	2800
7	BMW	35	2870

The first example automatically creates local indexes for all of the result indexes for you.

MdTable(T, Rows, Cols, '.' & Cols, 'average')→

	.Mpg ▶
.Car_type ▼	26	30	35
BMW	Null	2955	2835
Honda	2330	Null	2210
VW	2185	1705	Null

This next example assumes you've created indexes Car_type and Mpg in advance. Since you created them yourself, you have control over the ordering of the index elements.

MdTable(T, Rows, Cols, [Car_type, Mpg], 'average', 'n/a') →

	Mpg ▶
Car_type ▼	26	30	35
VW	2185	1705	n/a
Honda	2330	n/a	2210
BMW	n/a	2955	2835

Cells with no corresponding rows in T containing n/a. Rows 6 and 7 in T both specify values for Car_type = BMW, Mpg = 35, which are combined by the "average" «type» function.

You can also create global indexes for the result, but let it set the index values for you (requires Analytica 6.3 or later).

Index Mpg := ComputedBy(T)

Index Car_type := ComputedBy(T)

MdTable(T, Rows, Cols, [Car_type, Mpg], 'average') →

	.Mpg ▶
Car_type ▼	26	30	35
BMW	Null	2955	2835
Honda	2330	Null	2210
VW	2185	1705	Null

MdTable can also work with a User-Defined function for «type», provided it is an Array-reducing functions that operates over an index. Suppose we define this Function First that returns the first element of an array over an index:

Function First( A : Array[I] ; I : Index ) := A[@I = 1]

We can then use it as the type function:

MdTable(T, Rows, Cols, [Car_type, Mpg], 'First', 'n/a') →

	Mpg ▶
Car_type ▼	26	30	35
VW	2185	1705	n/a
Honda	2330	n/a	2210
BMW	n/a	2955	2800

To aggregate X over Car_type, we can use the «valueColumn». Here we will aggregate using Sum.

MdTable(T, Rows, Cols, [Car_type], valueColumn: 'X') →

Car_Type ▼
VW	3890
Honda	4540
BMW	8625

An equivalent way to do the same is MdTable(T, Rows, Cols, [Car_type,Null] )

To aggregate over a different index or indexes, use Null in the «vars» parameter to indicate which indexes to not include in the result. Here we sum out the first column, Car_type.

MdTable(T, Rows, Cols, [Null, Mpg] ) →

Mpg ▼
26	4515
30	4660
35	7880

If T had 6 coordinate columns and you wanted to aggregate onto 3 dimensions only, then you'd need to make sure that the three final dimensions were in the first three columns. If they were not there initially, then you'd reindex as in the previous example. If you are aggregating only a single target dimension, the Aggregate function can also be used and may be more intuitive. MdTable is actually more general since you can aggregate onto a multi-dimensional table.

To use both Mpg and X as value columns, we can define a measure dimension:

Index Measure_Index := ['Mpg', 'X']

Then

MdTable(T, Rows, Cols, [Car_type], valueColumn: Measure_Index) →

	MeasureIndex ▶
Car_Type ▼	Mpg	X
VW	56	3890
Honda	61	4540
BMW	100	8625

Notice here that both Mpg and X have been summed -- both values used the same «type». However, suppose we want the average value for Mpg, but the maximum value for X, i.e., each "measure" having its own «type». We can accomplish this using:

MdTable(T, Rows, Cols, [Car_type], valueColumn: Measure_Index,

type: Array(Measure_Index, ["average", "max"])) →

	MeasureIndex ▶
Car_Type ▼	Mpg	X
VW	28	2185
Honda	30.5	2330
BMW	33.3	2955

Fact Table

In order to convert a 2D relational table with more than one value per combination of indexes, you would use the parameter «valueColumn» to create a Fact Table. For example, suppose T, Rows, and Cols are defined as indicated by the following table:

	Cols ▶
Rows ▼	Car_type	Mpg	X	Y
1	VW	26	2185	1
2	VW	30	1705	2
3	Honda	26	2330	3
4	Honda	35	2210	3
5	BMW	30	2955	4
6	BMW	35	2800	5
7	BMW	35	2870	5

And suppose Fact is an index defined as ['X', 'Y']. Therefore:

MDTable(T, Rows, Cols, [Car_type, Mpg], valueColumn: Fact, defaultValue: "n/a") →

MPG = 26	MPG = 30	MPG = 35
Fact ▶ Car_type ▼ X Y VW 2185 1 Honda 2330 3 BMW n/a n/a	Fact ▶ Car_type ▼ X Y VW 1705 2 Honda n/a n/a BMW 1955 4	Fact ▶ Car_type ▼ X Y VW n/a n/a Honda 2210 3 BMW 5670 10

Notice that in the example, Rows 6 and 7 both specified values for Car_type = BMW, Mpg=35. By default the Sum type function was used to combine these.

History

Introduced in Analytica 4.0.

Some conveniences added in Analytica 6.3:

• Automatic setting of global result indexes when they are defined with ComputedBy.
• Auto-creation of local result indexes then given a textual index name starting with a dot ('.')
• Ignore columns when the corresponding entry in «vars» is Null.
• Ability to use a 'Count' agglomeration without any value column. Done by setting «valueColumn» to Null, or by listing all indexes in a list to «vars».
• «vars» can be indexed by «Cols». In this case, «valueColumn» can be any column or 1-D array of columns (i.e., the index columns don't have to come first).
• The preferred name for the 5th parameter was changed from «conglomerationFn» to «type».

See Also

• MdArrayToTable inverse of MdTable
• Smart_MdTable library
• Relational tables and multiD arrays
• Unflatten
• Unique
• Aggregate
